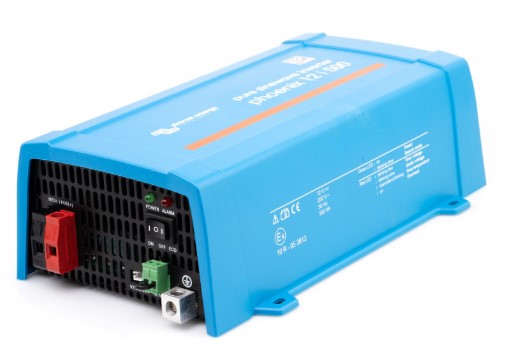

PIN121501200
Continuous power 500 VA
Peak performance 900 W
AC voltage / frequency output 230 V AC or 120 V AC / 50 Hz or 60 Hz
Input voltage range 9.2 – 17 V
DC low shut down (adjustable) 9.3 V
DC low restart and alarm (adjustable) 10.9 V
Battery charged detect 14.0 V
Max. efficiency 90%
Zero-load power 6.0 W
Default zero-load power in ECO mode 1.0 W
Protection a – f
Battery connection Screw terminals
Max. cable cross-section 10 mm2
AC outputs 230 V Schuko (CEE 7/4)
Material Steel case and plastic cover
Protection category IP21
Operating temperature range -40 to +65 °C
Dimensions (h x w x d) 86 x 172 x 275 mm
Weight: 3.9 kg
